• CSA certified •
• Made in U.S.A.•
• CFC free •

Includes:
Free standing cabinet, heat exchangers, separator, automatic condensate drain, hermetic refrigeration system and controls, on/off switch, fault light, power cord, cleanable inlet strainer and ambient air filter

Refrigerated Dryers
VHIT Series

Refrigerated Type Compressed Air Dryers

For use on systems without an after cooler ... 180°F maximum inlet temperature

Does the job of an aftercooler, separator, dryer and filter

Cools - accepts hot air directly from a compressor (up to 180°F, 82°C)
Dries - eliminates troublesome water from downstream air lines
Cleans - includes an integral 3 micron coalescing filter - removes contaminants and oil aerosols
Reheats - saves energy and prevents pipe sweating
5 year Heat Exchanger warranty
2 year Refrigeration System warranty

Model For use
with air
compressor
H.P.
Capacity
(scfm) @
In/Out
Conn.
(NPT)
Dimensions (in.)
Wt.
(Lb.)

Two Stage
175
psig
Single Stage
125 psig
175 psig
125 psig
H
W
D

VHIT05
VHIT08
VHIT10
VHIT15
VHIT20
5
7.5
10
15
20
5
5
7.5
10
15
23
29
41
58
88
20
25
35
50
75
1/2"
1/2"
1/2"
3/4"
3/4"
28
28
28
37
37
10
10
10
17
17
13
13
13
17
17
79
80
81
150
155

Maximum operating pressure: 175 psig; Maximum inlet temperature: 180°F; Ambient temperature range: 35°F to 110°F 115VAC/1 ph/60 Hz

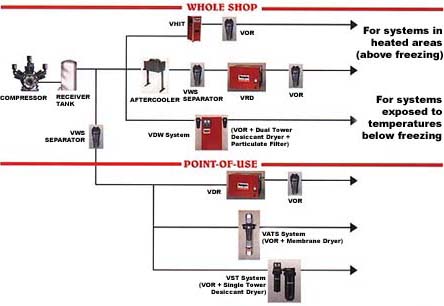

Protect your whole shop from contamination

Match Capacity to Compressor Output
VWS Series Water Separator
VOR Series Oil Remover
VHIT Series or VRD Series Refrigerated Dryer
VDW Series Desiccant Dryer

Membrane Dryer Packages Eliminate Imperfections on Painted Surfaces

Membrane dryers operate without electricity, without moving parts, without any replacement or repair parts.

The only maintenance is replacement of the prefilter element and drain mechanism. Since there is nothing to wear out, with proper pre-filter maintenance the dryer can last a lifetime

Dryer is supplied with a pre-filter .. a coalescing type oil removal filter complete with automatic drain and element change indicator ... mounting bracket and interconnecting tube and fittings.
Not an absorber or absorber that required frequent replacement - coalescing action offers ultra clean air and long filter element life.
Removes oil aerosols for virtually oil free air. Removes all solid particles 0.01 micron and larger
Furnished with integral automatic drain and indicator that signals when the element requires changing.

Model
Capacity
@ 100 psig
In/Out
Conn. (NPT)
Dimensions (in.)
Wt.
(lb.)

In
Out
H
W
D

VATS9
VATS21
9
21
7.5
17
3/8"
3/8"
15
27
6
6
8
8
14
16

Model
Capacity
(scfm) @ 100 psig
Conn. (NPT)
Dimensions (in.)
Wt.
(lb.)

H
W

VOR20
VOR35
20
35
1/2"
1/2"
11
14
4
4
8
8.1

Note: The difference between In and Out is the amount of air used to sweep the water vapor out of the dryer. Be certain that your air compressor is large enough to supply this requirement in addition to your normal requirements.
Maximum operating pressure: 175 psi
Maximum inlet temperature: 120°F
